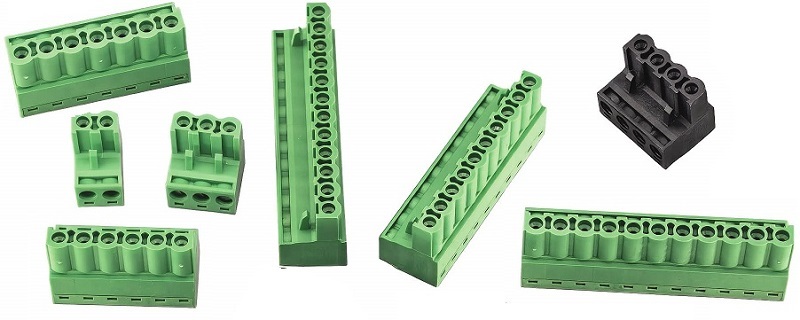

Wire To Wire Pluggable Plug-in Terminal Block Alternative for Phoenix BCP-508- 4-GN
Description of the pluggable terminal blocks
Our wire-to-wire pluggable terminal block, produced by Bede mold and plastic Products CO.,Ltd, serves as a reliable drop-in alternative to BCP-508- x-GN, a 5.08mm pitch screw-clamp terminal block.
Engineered for direct replacement, it matches the original mating profile and pin pitch. No PCB redesign or mechanical modifications are needed when swapping imported parts. Built with PA66 UL94-V0 flame-retardant housing and tin-plated copper contacts, it maintains low contact resistance and stable electrical performance from -40℃ to +105℃.
Controlled by our in-house molding and strict quality checks, this terminal block offers obvious cost savings versus imported equivalents while keeping the same mechanical and electrical performance. Short lead times and flexible order quantities help optimize your procurement budget.
Available from 2P up to 12P versions. This wire-to-wire connector is widely adopted for control cabinet internal wiring, power supply harness connection, instrument and automation equipment field wiring. Pair it with our matching male plug to complete the full male-female docking assembly.
Electrical performance of the Pluggable Terminal Block
| Pitch |
Rated current |
Rated voltage |
Insulation Resistance |
Dielectric Strength |
temperature |
Wire Gauge |
| 5.08mm |
10A |
300V |
5000MΩ/1000V |
2000V/1 min |
-40℃ ~ +105℃ |
28~12AWG |
Size of the pluggable terminal blocks
Key Features of the pluggable terminal block
- Drop-in alternative for MSTB BCP-508- x-GN, 5.08mm pitch wire-to-wire pluggable terminal block
- Screw clamping wiring structure, secure wire connection and easy assembly & maintenance
- PA66 UL94-V0 flame retardant housing, tin-plated copper conductive parts
- Wide working temperature: -40℃ ~ +105℃; certified with UL, CE, RoHS
- Manufactured by Bede mold and plastic Products CO.,Ltd, stable & repeatable quality
- Significant price advantage vs imported original parts, faster delivery
- Multiple pole options: 2P / 3P / 4P / 5P / 6P up to 12P
- Matching male terminals are available: cable male terminal IC 2,5/ x-ST-5,08, PCB straight pins terminal BCH-508VS- x- GN and PCB angle pins terminal block BCH-508HS- x- GN
